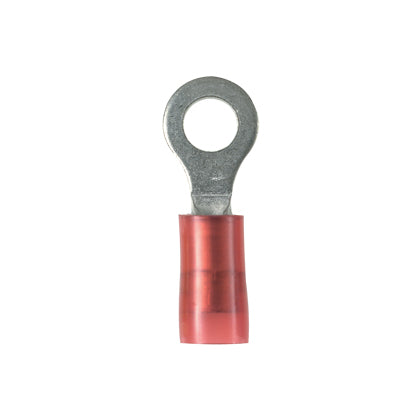

Panduit PN18-6RN-M | Pan-Term Loose Piece Ring Terminal
Description
Description
Our ring terminal is designed for tighter space, the narrow tongue fits easily into compact areas, with the protective nylon insulation for lasting connections.
Ring Terminal, 22 - 18 AWG, #6 stud size, narrow tongue, nylon insulated.
Panduit Pan-Term Terminal, Type PN-RN, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.77 in Length, Seamed/Sleeved/Standard Barrel, Narrow Ring Tongue, 0.22 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.18 in Clearance, 221 deg F, Copper, Tin Plated, Red
Panduit - PN18-6RN-M - Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PN18-6RN-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN18-6RN-M |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-101) |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| UPC | 07498382353 |
