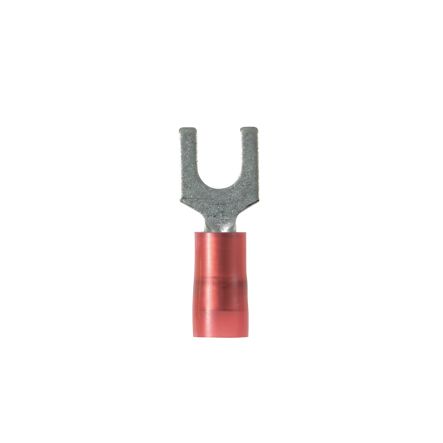

Panduit PN18-8F-C | Pan-Term PN18-8F-C Fork Terminal, Red, Nylon, 16-22 AWG, #8 Stud, PK100
The PN18-8F-C Pan-Term Terminal is a nylon insulated, fork terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit - PN18-8F-C - Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PN18-8F-C - Product Categories
- Wire Termination
- Fork Terminals
Panduit - PN18-8F-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN18-8F-C |
| Item Description | Pan-Term PN18-8F-C Fork Terminal, Red, Nylon, 16-22 AWG, #8 Stud, PK100 |
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.43 |
| Barrel Length (mm) | 10.8 |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Butted |
| Maximum Wire Insulation Diameter (In.) | 0.145 |
| Maximum Wire Insulation Diameter (mm) | 3.68 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Overall Length (In.) | 0.85 |
| Overall Length (mm) | 21.6 |
| Overall Width (In.) | 0.32 |
| Overall Width (mm) | 8.1 |
| Tongue Length (In.) | 0.43 |
| Tongue Length (mm) | 10.8 |
| Sub Brand | Pan-Term |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.32 |
| Tongue Width (mm) | 8.1 |
| Packaging Type | Bottle |
| Product Type | Fork Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
Panduit - PN18-8F-C - Package Information
| UPC | 07498380302 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0074 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.0368 |
