Brand: Panduit
|
SKU:
PAN-PN18-8F-M

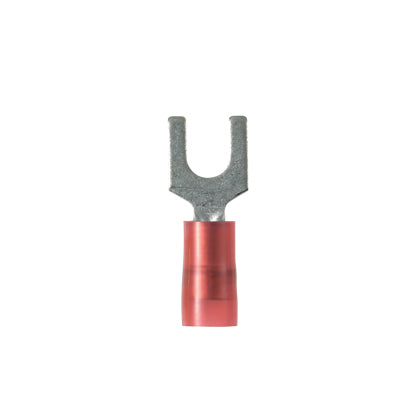

Panduit PN18-8F-M | Loose Piece Forks | UPC - 07498380303
Regular price
$452.04
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN18-8F-M | Loose Piece Forks | UPC - 07498380303
Regular price
$452.04
Unit price
Brand: Panduit
|
SKU:
PAN-PN18-8F-M
Regular price
$452.04
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PN-F, Stranded Copper Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.85 in Length, Sleeved Barrel, Standard Fork Tongue, 0.32 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.08 to 0.145 in Dia Nylon Insulation, 0.23 in Clearance, Standard Barrel Configuration, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PN18-8F-M | Loose Piece Forks | UPC - 07498380303 Key Specs
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PN18-8F-M | Loose Piece Forks | UPC - 07498380303 Data Sheets
| Part Drawings | Part Drawing - PDF - A41191 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PN18-8F-M | Loose Piece Forks | UPC - 07498380303 Environmental Information
| Panduit's RoHS Statement | Download and View |
