Brand: Panduit
|
SKU:
PAN-PN18-8FF-3K
Panduit PN18-8FF-3K | Terminals on a Reel | UPC - 07498380674
Regular price
$1,737.22
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN18-8FF-3K | Terminals on a Reel | UPC - 07498380674
Regular price
$1,737.22
Unit price
Brand: Panduit
|
SKU:
PAN-PN18-8FF-3K
Regular price
$1,737.22
Unit price
Shipping calculated at checkout.
Description
Description

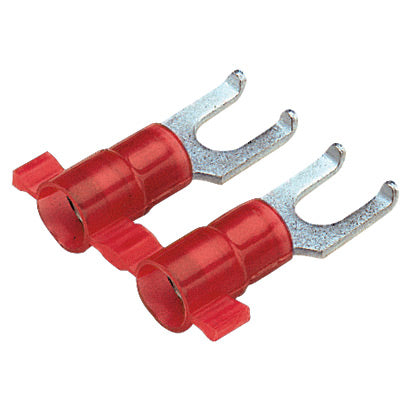

Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PN-FF, Stranded Copper Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.87 in Length, Insulation Grip Sleeve Barrel, Flanged Fork Tongue, 0.31 in W Tongue, 600 VAC, 0.22 in L Wire Strip, 0.14 in Nylon Insulation, Standard Barrel Configuration, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
- Non-expanded insulation
Panduit PN18-8FF-3K | Terminals on a Reel | UPC - 07498380674 Key Specs
| Fork Type | Flanged Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 0.9 |
| Minimum Metric Conductor Size (mm²) | 0.3 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PN18-8FF-3K | Terminals on a Reel | UPC - 07498380674 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-5SLFB-3K Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A41093 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PN18-8FF-3K | Terminals on a Reel | UPC - 07498380674 Environmental Information
| Panduit's RoHS Statement | Download and View |
