Brand: Panduit
|
SKU:
10044512

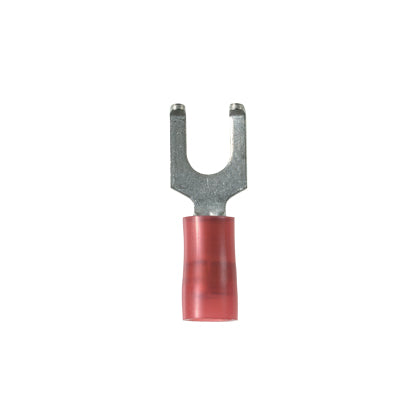

Panduit PN18-8FF-C | Loose Piece Forks | UPC - 07498380602
Regular price
$154.96
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN18-8FF-C | Loose Piece Forks | UPC - 07498380602
Regular price
$154.96
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PN-FF, Stranded Copper Conductor, 22 to 16 AWG Conductor, #8 Stud, 0.88 in Length, Sleeved Barrel, Flanged Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.08 to 0.136 in Dia Nylon Insulation, 0.23 in Clearance, Standard Barrel Configuration, 221 deg F, Copper, Tin Plated, Red
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PN18-8FF-C | Loose Piece Forks | UPC - 07498380602 Key Specs
| Fork Type | Flanged Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PN18-8FF-C | Loose Piece Forks | UPC - 07498380602 Environmental Information
| Panduit's RoHS Statement | Download and View |
