Brand: Panduit
|
SKU:
PN18-8R-M

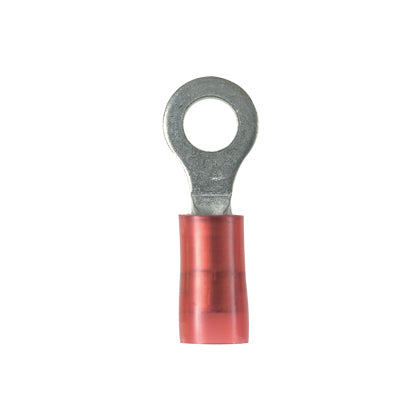

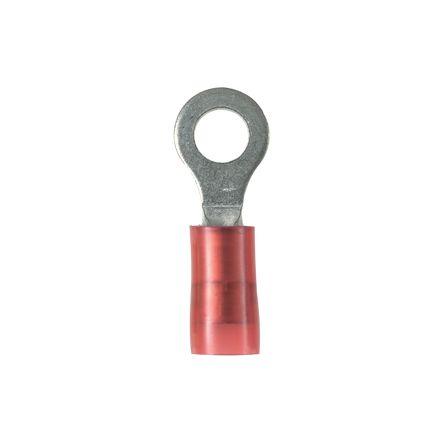

Panduit PN18-8R-M | Pan-Term Ring Terminal, Red, Nylon, 18-22 AWG, #8 Stud, PK1000
Regular price
$436.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN18-8R-M | Pan-Term Ring Terminal, Red, Nylon, 18-22 AWG, ...
Regular price
$436.12
Unit price
Description
Description
Panduit PN18-8R-M | Pan-Term Ring Terminal, Red, Nylon, 18-22 AWG, #8 Stud, PK1000
Our ring terminal offers reliable, secure connections with durable nylon insulation for electrical applications in various environments.
Panduit Pan-Term Terminal, Type PN-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.85 in Length, Seamed/Standard Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Red
Panduit - PN18-8R-M - Features
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - PN18-8R-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN18-8R-M |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-149) |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498380005 |
Panduit - PN18-8R-M - Videos
| Panduit PN18-8R-M Video 1 | Click to View |
|---|---|
| Panduit PN18-8R-M Video 2 | Click to View |
