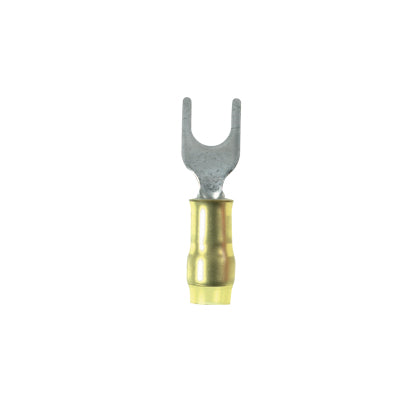

Panduit PN22-6F-C | Pan-Term Loose Piece Forks
Description
Description
Protect your electrical connections with our fork terminal, the nylon-insulated body ensure a safe and reliable connection for various applications.
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PN-F, Stranded Copper Conductor, 26 to 22 AWG Conductor, #6 Stud, 0.77 in Length, Sleeved Barrel, Standard Fork Tongue, 0.25 in W x 0.02 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.09 in Dia Nylon Insulation, 0.26 in Clearance, Standard Barrel Configuration, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PN22-6F-C - Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Flange design provides extra secure connection on a variety of applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - PN22-6F-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN22-6F-C |
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #22 |
| Maximum Copper Conductor Size (AWG STR) | #22 |
| Maximum Copper Conductor Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #26 |
| Minimum Copper Conductor Size (AWG STR) | #26 |
| Minimum Copper Conductor Size (AWG) | #26 |
| Maximum Wire Size (AWG) | 22 |
| Minimum Wire Size (AWG) | #26 |
| Maximum Metric Conductor Size (mm²) | 0.5 |
| Minimum Metric Conductor Size (mm²) | 0.1 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 3/16 |
| Wire Strip Length (mm) | 4.8 |
| Standards Met | UL Listed 587H E52164 |
| Maximum Voltage (V) | 300 |
| Maximum Voltage (kV) | 0.3 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498389034 |
