Brand: Panduit
|
SKU:
4060388-JBT

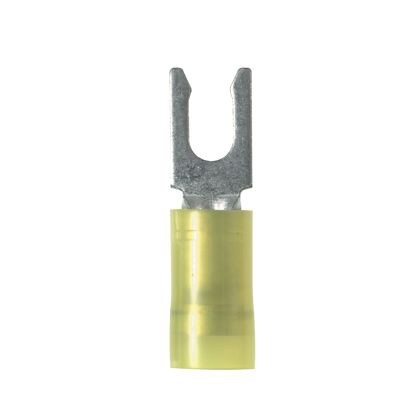

Panduit PNF10-10LF-D | Pan-Term PNF10-10LF-D Loose Piece Forks
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF10-10LF-D | Pan-Term PNF10-10LF-D Loose Piece Forks
Regular price
$1.47
Unit price
Description
Description
Panduit PNF10-10LF-D | Pan-Term PNF10-10LF-D Loose Piece Forks
Locking Fork Terminal, nylon insulated, funnel entry, 12-10 AWG, #10 stud size, bulk package.
Specifications
Specifications
Panduit - PNF10-10LF-D - Product Categories
- Wire Termination
- Fork Terminals
Panduit - PNF10-10LF-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PNF10-10LF-D |
| Item Description | Pan-Term PNF10-10LF-D Loose Piece Forks |
| Fork Type | Locking Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.3 |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Butted |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Overall Length (In.) | 1.05 |
| Overall Length (mm) | 26.7 |
| Overall Width (In.) | 0.34 |
| Overall Width (mm) | 8.6 |
| Tongue Length (In.) | 0.53 |
| Tongue Length (mm) | 13.3 |
| Sub Brand | Pan-Term |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.34 |
| Tongue Width (mm) | 8.6 |
| Packaging Type | Box |
| Product Type | Locking Fork Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
Brand Name - PNF10-10LF-D - Package Information
| UPC | 07498381025 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.0461 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
