Brand: Panduit
|
SKU:
PNF10-10R-L

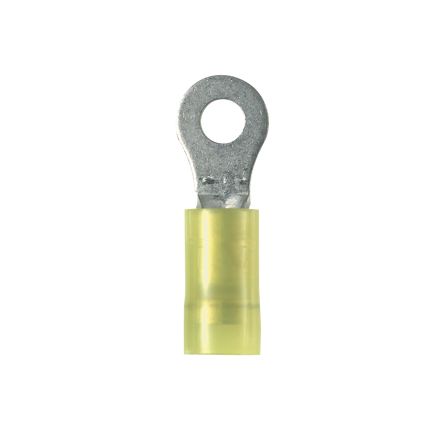

Panduit PNF10-10R-L Ring Terminal, nylon insulated, 12 - 10 AWG, #10 stud size, funnel entry 50 PK
Regular price
$86.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF10-10R-L Ring Terminal, nylon insulated, 12 - 10 AWG, #1...
Regular price
$86.15
Unit price
Description
Description
Panduit PNF10-10R-L | Pan-Term PNF10-10R-L Loose Piece Ring Terminal
Ring Terminal, 12 – 10 AWG, #10 stud size, funnel entry, nylon insulated, standard package.
Panduit - PNF10-10R-L - Features
- Ring Terminal, 12 - 10 AWG, #10 stud size, funnel entry, nylon insulated.
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PNF10-10R-L - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PNF10-10R-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PNF10-10R-L |
| Item Description | Pan-Term PNF10-10R-L Loose Piece Ring Terminal |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-112) |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Grip Sleeve |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.23 |
| Insulation Diameter (mm) | 5.7 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Maximum Wire Insulation Diameter (mm) | 3.7 |
| Minimum Wire Insulation Diameter (In.) | 0.23 |
| Minimum Wire Insulation Diameter (mm) | 5.7 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.06 |
| Overall Length (mm) | 26.9 |
| Overall Width (In.) | 0.38 |
| Overall Width (mm) | 9.7 |
| Tongue Width (In.) | 0.23 |
| Tongue Width (mm) | 5.8 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - PNF10-10R-L - Package Information
| UPC | 07498351333 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0099 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.0985 |
