Brand: Panduit
|
SKU:
10044764
Panduit PNF10-14F-2K | Terminals on a Reel | UPC - 07498381181
Regular price
$1,139.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF10-14F-2K | Terminals on a Reel | UPC - 07498381181
Regular price
$1,139.36
Unit price
Description
Description

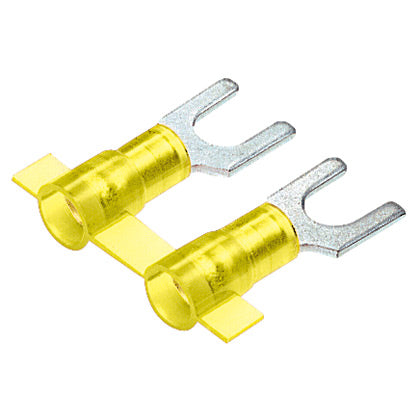

Fork Terminal, nylon insulated, funnel entry, metal insulation grip sleeve, 12 - 10 AWG, 1/4 stud size.
Panduit Panduit PNF10-14F-2K | Terminals on a Reel | UPC - 07498381181 Key Specs
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | M6 |
| Wire Strip Length (In.) | 0.34 |
| Wire Strip Length (mm) | 8.7 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PNF10-14F-2K | Terminals on a Reel | UPC - 07498381181 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PNF18-6F-3K Product Page | Download and View |
| Part Drawings | Fork Terminals-A41139 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PNF10-14F-2K | Terminals on a Reel | UPC - 07498381181 Environmental Information
| Panduit's RoHS Statement | Download and View |
