Panduit PNF10-38R-2K | Reel Smart Loose Piece Ring Terminal
Regular price
$1,831.06
Unit price
Brand: Panduit
|
SKU:
10044557
Regular price
$1,831.06
Unit price
Description
Description

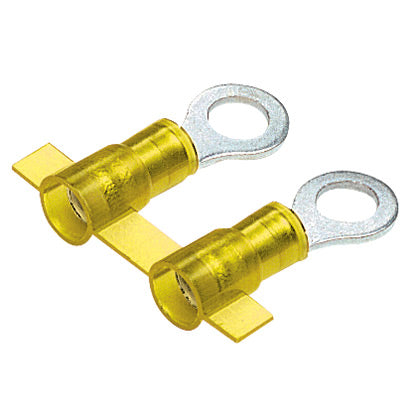

Panduit PNF10-38R-2K | Reel Smart Loose Piece Ring Terminal
Panduit Pan-Term Reel Smart Terminal, Type PNF-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 3/8 in Stud, 1.29 in Length, Insulation Grip Sleeve/Funnel Entry Barrel, Ring Tongue, 0.58 in W x 0.04 in THK Tongue, 600 VAC, 11/32 in L Wire Strip, 0.43 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PNF10-38R-2K - Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
Specifications
Panduit - PNF10-38R-2K - Specifications
| Stud Hole Size (In.) | 3/8 |
|---|---|
| Stud Hole Size (mm) | 10 |
| Stud Size | 3/8" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #12 |
| Wire Strip Length (In.) | 11/32 |
| Wire Strip Length (mm) | 8.7 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Grip Sleeve |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.23 |
| Insulation Diameter (mm) | 5.7 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Type | Ring Terminal |
| UNSPSC Code | 39121400 |
Panduit - PNF10-38R-2K - Package Includes
| UPC | 07498381177 |
|---|---|
| Std. Pkg. Qty. | 2000 |
| Std. Pkg. Volume (cf) | 0.9208 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
