Panduit PNF10-38R-L | Pan-Term Loose Piece Ring Terminal
Description
Description
Our ring terminal offers reliable, secure connections with durable nylon insulation for electrical applications in various environments.

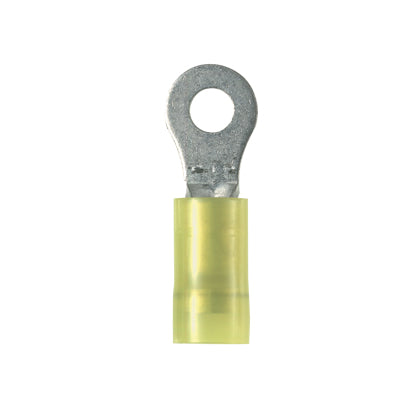

Ring Terminal, 12 - 10 AWG, 3/8" stud size, funnel entry, nylon insulated.
Panduit Pan-Term Terminal, Type PNF-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 3/8 in Stud, 1.29 in Length, Funnel Entry/Insulation Grip Sleeve Barrel, Ring Tongue, 0.58 in W x 0.04 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.43 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PNF10-38R-L - Features
- Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
- Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
- Multi finger insulation grip, provides superior insulation holding characteristics, especially on EPR and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties, deep V groove
- Inner barrel serrations, provide optimum conductivity, reliability and holding power
- 0.18 in Dia maximum insulation, 0.9 in hole center to barrel end, 0.28 in hole center to barrel
- Pure electrolytic copper
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PNF10-38R-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PNF10-38R-L |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 10 |
| Stud Size | 3/8" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #12 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-114) |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Grip Sleeve |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.23 |
| Insulation Diameter (mm) | 5.7 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| UPC | 07498351336 |
