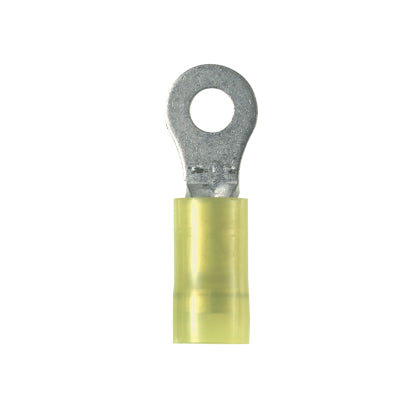

Panduit PNF10-56R-D | Loose Piece Ring Terminal | UPC - 07498381032
Regular price
$401.95
Unit price
Brand: Panduit
|
SKU:
PAN-PNF10-56R-D
Regular price
$401.95
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Terminal, Type PNF-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 5/16 in Stud, 1.21 in Length, Funnel Entry/Insulation Grip Sleeve Barrel, Ring Tongue, 0.52 in W x 0.04 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.38 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit PNF10-56R-D | Loose Piece Ring Terminal | UPC - 07498381032 Key Specs
| Stud Hole Size (In.) | 29/100 |
| Stud Hole Size (mm) | 7.4 |
| Stud Size | 5/16" |
| Insulation Material | Nylon |
| Maximum Wire Size (AWG) | 10 AWG |
| Minimum Wire Size (AWG) | 10 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed, UL 486A, UL 486B; CSA Certified C22.2 No. 65 |
| Base Material | Copper |
| Maximum Voltage (kV) | 600 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Grip Sleeve |
Panduit PNF10-56R-D | Loose Piece Ring Terminal | UPC - 07498381032 Data Sheets
| Part Drawings | Ring terminals, 3 pc. nylon funnel insulated,#12-10 | Download and View |
| Cross References | Terminal Military Cross Reference | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PNF10-56R-D | Loose Piece Ring Terminal | UPC - 07498381032 Environmental Information
| Panduit's RoHS Statement | Download and View |
