Description
Description

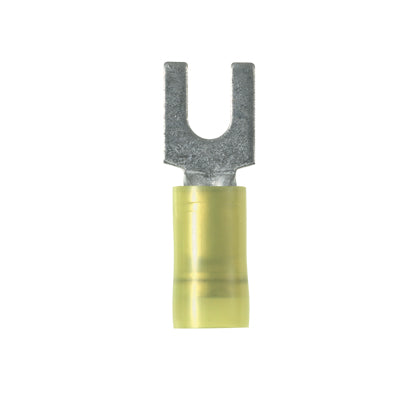

Panduit Pan-Term Fork Terminal, Loose Piece, Series: PNF-F, Stranded Copper Conductor, 12 to 10 AWG Conductor, #6 Stud, 1.01 in Length, Funnel Entry/Insulation Grip Sleeve Barrel, Standard Fork Tongue, 0.31 in W Tongue, 600 VAC, 0.28 in L Wire Strip, 0.23 in Nylon Insulation, 221 deg F, Copper, Tin Plated, Yellow
- Fork design provides for fast and easy installation, without the need to remove fastener
- Flange design provides extra secure connection on a variety of applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Non-expanded insulation
Panduit Panduit PNF10-6F-D | Loose Piece Terminal | UPC - 07498381016 Key Specs
| Minimum Voltage (V) | 600 |
| Minimum Voltage (kV) | 0.6 |
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR31212 |
| Maximum Voltage (V) | 600 |
Panduit Panduit PNF10-6F-D | Loose Piece Terminal | UPC - 07498381016 Environmental Information

| Panduit's RoHS Statement | Download and View |
