Brand: Panduit
|
SKU:
10044563

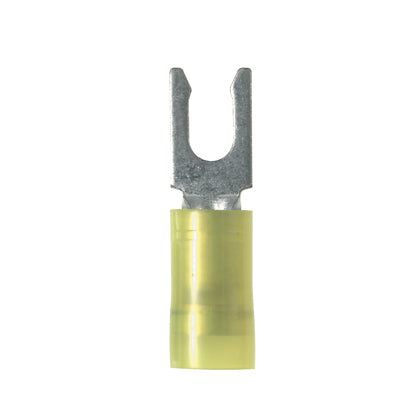

Panduit PNF10-6LF-D | Loose Piece Terminal | UPC - 07498381017
Regular price
$368.73
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF10-6LF-D | Loose Piece Terminal | UPC - 07498381017
Regular price
$368.73
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PNF-LF, Stranded Copper Conductor, 12 to 10 AWG Conductor, #6 Stud, 1.02 in Length, Funnel Entry/Sleeved Barrel, Locking Fork Tongue, 0.3 in W x 0.04 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.12 to 0.225 in Dia Nylon Insulation, 0.2 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
- Fork design provides for fast and easy installation, without the need to remove fastener
- Flange design provides extra secure connection on a variety of applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PNF10-6LF-D | Loose Piece Terminal | UPC - 07498381017 Key Specs
| Fork Type | Locking Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PNF10-6LF-D | Loose Piece Terminal | UPC - 07498381017 Environmental Information
| Panduit's RoHS Statement | Download and View |
