Brand: Panduit
|
SKU:
10044716-EA

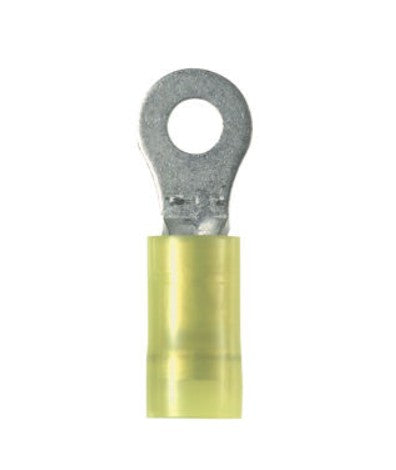

Panduit PNF10-6R-D | Pan-Term Nylon Insulated Ring Terminal
Regular price
$1.26
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF10-6R-D | Pan-Term Nylon Insulated Ring Terminal
Regular price
$1.26
Unit price
Description
Description
Panduit PNF10-6R-D | Pan-Term Nylon Insulated Ring Terminal
Our ring terminal offers reliable, secure connections with durable nylon insulation for electrical applications in various environments.
Specifications
Specifications
Panduit - PNF10-6R-D - Specifications
| Stud Hole Size (In.) | #6 |
|---|---|
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Nylon |
| Copper Conductor Size | 12-10 AWG |
| Wire Size | 12-10 AWG |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.5 |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL 94 HB, V-2 |
