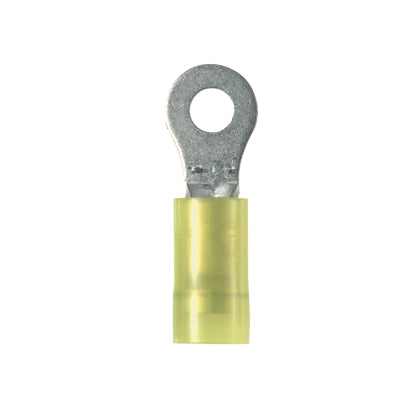

Panduit PNF10-6R-D | Ring Terminal | UPC - 07498381018
Regular price
$362.38
Unit price
Brand: Panduit
|
SKU:
10044716
Regular price
$362.38
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PNF-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, #6 Stud, 1.06 in Length, Insulation Grip Sleeve/Funnel Entry Barrel, Ring Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Panduit Panduit PNF10-6R-D | Ring Terminal | UPC - 07498381018 Key Specs
| Minimum Operating Temperature (°C) | 105 |
| Stud Hole Size (In.) | 6.00 |
| Stud Hole Size (mm) | 152.4 |
| Stud Size | #6 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 12 |
| Maximum Copper Conductor Size (AWG STR) | 12 |
| Maximum Copper Conductor Size (AWG) | 12 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | 12 |
| Minimum Copper Conductor Size (AWG SOL) | 10 |
| Minimum Copper Conductor Size (AWG STR) | 10 |
| Minimum Copper Conductor Size (AWG) | 12 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Finish/Coating | Tinned |
Panduit Panduit PNF10-6R-D | Ring Terminal | UPC - 07498381018 Environmental Information
| Panduit's RoHS Statement | Download and View |
