Brand: Panduit
|
SKU:
PAN-PNF10-8F-2K
Panduit PNF10-8F-2K | Loose Piece Terminal | UPC - 07498381179
Regular price
$1,586.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF10-8F-2K | Loose Piece Terminal | UPC - 07498381179
Regular price
$1,586.59
Unit price
Brand: Panduit
|
SKU:
PAN-PNF10-8F-2K
Regular price
$1,586.59
Unit price
Shipping calculated at checkout.
Description
Description

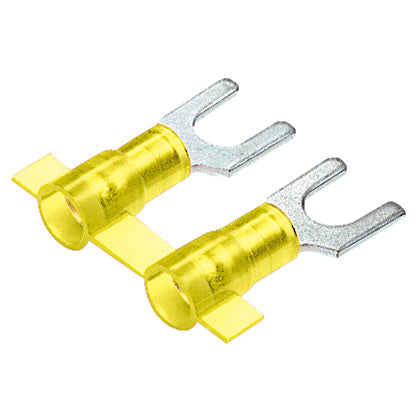

Panduit Pan-Term Reel Smart Fork Terminal, Loose Piece, Series: PNF-F, Stranded Copper Conductor, 12 to 10 AWG Conductor, #8 Stud, 1.02 in Length, Funnel Entry/Sleeved Barrel, Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, 11/32 in L Wire Strip, 0.225 in Dia Nylon Insulation, 0.24 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit PNF10-8F-2K | Loose Piece Terminal | UPC - 07498381179 Key Specs
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.34 |
| Wire Strip Length (mm) | 8.7 |
| Standards Met | American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PNF10-8F-2K | Loose Piece Terminal | UPC - 07498381179 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PNF18-6F-3K Product Page | Download and View |
| Part Drawings | Fork Terminals-A41139 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PNF10-8F-2K | Loose Piece Terminal | UPC - 07498381179 Environmental Information
| Panduit's RoHS Statement | Download and View |
