Brand: Panduit
|
SKU:
PNF10-8F-L

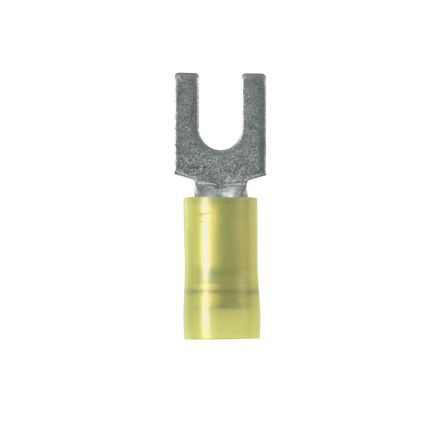

Panduit PNF10-8F-L Fork Terminal, Funnel Entry, Nylon Insulated, 12, 10 AWG, #8 Stud Size, Pack of 50
Regular price
$90.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF10-8F-L Fork Terminal, Funnel Entry, Nylon Insulated, 12...
Regular price
$90.07
Unit price
Description
Description
Panduit PNF10-8F-L | Pan-Term PNF10-8F-L Loose Piece Terminal
Fork Terminal, nylon insulated, funnel entry, 12- 10 AWG, #8 stud size, standard package.
Panduit - PNF10-8F-L - Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PNF10-8F-L - Product Categories
- Wire Termination
- Fork Terminals
Panduit - PNF10-8F-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PNF10-8F-L |
| Item Description | Pan-Term PNF10-8F-L Loose Piece Terminal |
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.4 |
| Barrel Length (mm) | 10.2 |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Butted |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Maximum Wire Insulation Diameter (mm) | 5.8 |
| Outer Diameter (In.) | 0.23 |
| Outer Diameter (mm) | 5.8 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Inside Diameter (In.) | 0.12 |
| Inside Diameter (mm) | 3 |
| Overall Length (In.) | 1.02 |
| Overall Length (mm) | 25.9 |
| Overall Width (In.) | 0.37 |
| Overall Width (mm) | 9.4 |
| Tongue Length (In.) | 0.62 |
| Tongue Length (mm) | 15.7 |
| Sub Brand | Pan-Term |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.37 |
Panduit - PNF10-8F-L - Package Information
| UPC | 07498351355 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0074 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.0736 |
