Brand: Panduit
|
SKU:
1034488
Panduit PNF10-8R-D | Pan-Term PNF10-8R-D Ring Terminal, Yellow, Nylon, 10-12 AWG, #8 Stud, PK500
Regular price
$344.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF10-8R-D | Pan-Term PNF10-8R-D Ring Terminal, Yellow, Nyl...
Regular price
$344.57
Unit price
Description
Description

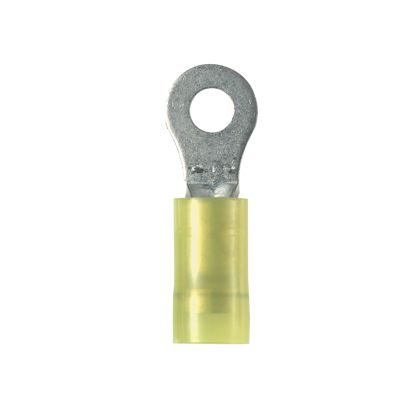

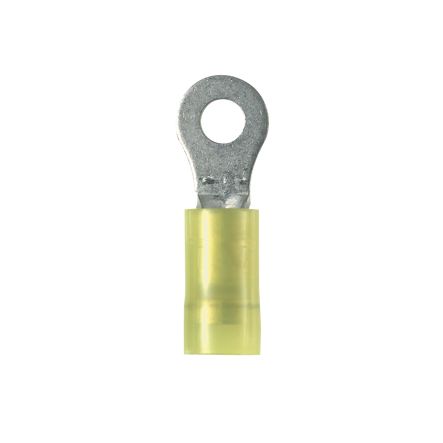

Panduit PNF10-8R-D | Pan-Term PNF10-8R-D Ring Terminal, Yellow, Nylon, 10-12 AWG, #8 Stud, PK500
Ring Terminal, 12 – 10 AWG, #8 stud size, funnel entry, nylon insulated, bulk package.
Panduit PNF10-8R-D Nylon Insulated Ring Terminal12-10 Awg #8 Stud Hole Funnelentr Ylw 500/pk Rohs
Specifications
Specifications
Panduit - PNF10-8R-D - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PNF10-8R-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PNF10-8R-D |
| Item Description | Pan-Term PNF10-8R-D Ring Terminal, Yellow, Nylon, 10-12 AWG, #8 Stud, PK500 |
| Minimum Operating Temperature (°C) | 105 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-156) |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.5 |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.23 |
| Insulation Diameter (mm) | 5.7 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Maximum Wire Insulation Diameter (mm) | 5.7 |
| Outer Diameter (In.) | 0.31 |
| Outer Diameter (mm) | 7.9 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.06 |
| Overall Length (mm) | 26.9 |
| Overall Width (In.) | 0.37 |
| Overall Width (mm) | 9.4 |
| Tongue Length (In.) | 0.53 |
| Tongue Length (mm) | 13.5 |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.37 |
| Tongue Width (mm) | 9.4 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - PNF10-8R-D - Package Information
| UPC | 07498381022 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.0482 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
