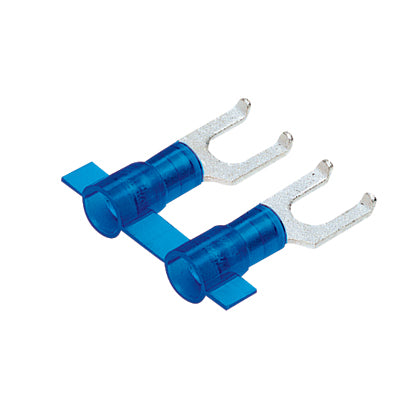

Panduit PNF14-10FF-3K | Terminals on a Reel | UPC - 07498381171
Regular price
$1,727.34
Unit price
Description
Description
Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PNF-FF, Stranded Copper Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.87 in Length, Funnel Entry/Insulation Grip Sleeve Barrel, Flanged Fork Tongue, 0.35 in W Tongue, 600 VAC, 0.25 in L Wire Strip, 0.16 in Nylon Insulation, 221 deg F, Copper, Tin Plated, Blue
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit PNF14-10FF-3K | Terminals on a Reel | UPC - 07498381171 Key Specs
| Fork Type | Flanged Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2 |
| Minimum Metric Conductor Size (mm²) | 1.3 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | C22.2 No.65; UL486A-486B; 587H; E52164; LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PNF14-10FF-3K | Terminals on a Reel | UPC - 07498381171 Environmental Information
| Panduit's RoHS Statement | Download and View |
