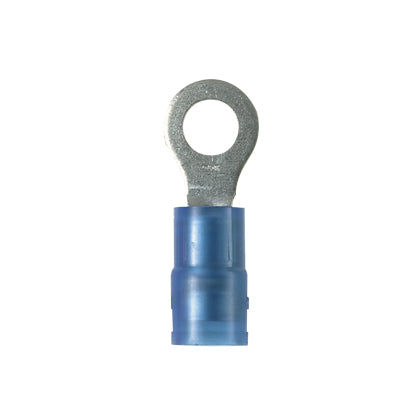

Panduit PNF14-10R-E | Ring Terminal | UPC - 07498336505
Regular price
$141.71
Unit price
Brand: Panduit
|
SKU:
10044717
Regular price
$141.71
Unit price
Description
Description
Ring Terminal, 16 – 14 AWG, #10 stud size, funnel entry, nylon insulated, convenience package.
Panduit Panduit PNF14-10R-E | Ring Terminal | UPC - 07498336505 Key Specs
| Minimum Operating Temperature (°C) | 105 |
| Stud Hole Size (In.) | 10.00 |
| Stud Hole Size (mm) | 254 |
| Stud Size | #10 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 16 |
| Maximum Copper Conductor Size (AWG STR) | 16 |
| Maximum Copper Conductor Size (AWG) | 16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | 16 |
| Minimum Copper Conductor Size (AWG SOL) | 14 |
| Minimum Copper Conductor Size (AWG STR) | 14 |
| Minimum Copper Conductor Size (AWG) | 16 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tinned |
Panduit Panduit PNF14-10R-E | Ring Terminal | UPC - 07498336505 Data Sheets
| Selection Guides | Selection Guide - WW-TMFL05 New Convenience Pack Terminals2 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | #16-14 Barrel Nylon Insulated, Funneled Wire Entry Ring Tongue | Download and View |
Panduit Panduit PNF14-10R-E | Ring Terminal | UPC - 07498336505 Environmental Information
| Panduit's RoHS Statement | Download and View |
