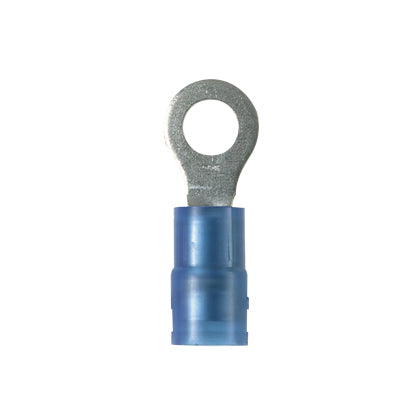

Panduit PNF14-38R-M | Ring Terminal | UPC - 07498381054
Regular price
$704.01
Unit price
Brand: Panduit
|
SKU:
709199
Regular price
$704.01
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PNF-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 3/8 in Stud, 1.14 in Length, Insulation Grip Sleeve/Funnel Entry Barrel, Ring Tongue, 0.53 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.45 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit PNF14-38R-M Key Specs
| Minimum Operating Temperature (°C) | 105 |
| Stud Size | 3/8" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Maximum Copper Conductor Size (AWG) | 14 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | 16 |
| Minimum Copper Conductor Size (AWG SOL) | 16 |
| Minimum Copper Conductor Size (AWG STR) | 16 |
| Minimum Copper Conductor Size (AWG) | 16 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Finish/Coating | Tinned |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
Panduit PNF14-38R-M Data Sheets
| Product Bulletins | PanTher LS8E and LS8EQ Hand-Held Thermal Transfer Printers | Download and View |
| Part Drawings | P1 Cassette Continuous Tape Label | Download and View |
| Product Bulletins | PanTher LS8E and LS8EQ Hand-Held Thermal Transfer Printers: IDCB79--SA-NOR | Download and View |
