Brand: Panduit
|
SKU:
676742

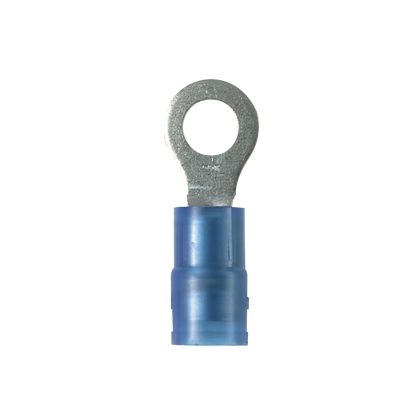

Panduit PNF14-4R-C | Ring, Funnel, Nylon, 16-14AWG, #4, PK100
Regular price
$1.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF14-4R-C | Ring, Funnel, Nylon, 16-14AWG, #4, PK100
Regular price
$1.72
Unit price
Description
Description
Panduit PNF14-4R-C | Ring,Funnel,Nylon,16-14AWG,#4,PK100
Our ring terminal offers reliable, secure connections with durable nylon insulation for electrical applications in various environments.
Panduit Pan-Term Terminal, Type PNF-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #4 Stud, 0.78 in Length, Insulation Grip Sleeve/Funnel Entry Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
Panduit - PNF14-4R-C - Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Specifications
Specifications
Panduit - PNF14-4R-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PNF14-4R-C |
| Stud Hole Size (mm) | 101.6 |
| Stud Size | #4 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Maximum Copper Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG SOL) | 16 |
| Minimum Copper Conductor Size (AWG STR) | 16 |
| Minimum Copper Conductor Size (AWG) | 16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.39 |
| Barrel Length (mm) | 9.9 |
| UPC | 07498351323 |
Panduit - PNF14-4R-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
