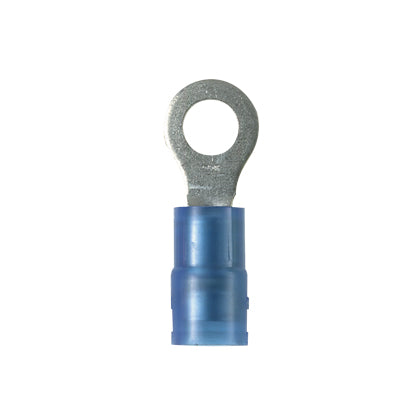

Panduit PNF14-56R-C | Ring Terminal | UPC - 07498351329

Panduit Pan-Term Terminal, Type PNF-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 5/16 in Stud, 1.06 in Length, Insulation Grip Sleeve/Funnel Entry Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.4 in Clearance, 221 deg F, Copper, Tin Plated, Blue

• Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
• EPR and other elastic or hard to grip Insulations
• The metal fingers firmly grip the insulation providing superior holding characteristics
• Cable support and strain relief
• Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
• Multi-finger insulation grip provides superior insulation holding characteristics
• Especially on epr and other elastic type insulations
• Brazed seam provides stronger more durable termination
• Manufactured of pure electrolytic copper provides maximum conductivity
• Low resistance and ductility for excellent crimp forming properties
• Deep V groove
• Inner barrel serrations provide optimum conductivity
• For paper, epr and other elastic or hard to grip insulations
• Pure electrolytic copper

Panduit Panduit PNF14-56R-C | Ring Terminal | UPC - 07498351329 Key Specs

---

Panduit Panduit PNF14-56R-C | Ring Terminal | UPC - 07498351329 Environmental Information
