Panduit PNF14-56R-M | Ring Terminal | UPC - 07498381053
Regular price
$704.01
Unit price
Description
Description

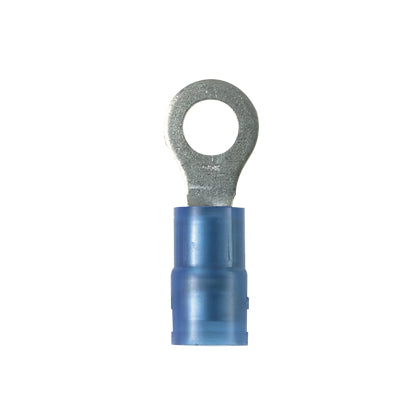

Panduit Pan-Term Terminal, Type PNF-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 5/16 in Stud, 1.06 in Length, Insulation Grip Sleeve/Funnel Entry Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.4 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit PNF14-56R-M | Ring Terminal | UPC - 07498381053 Key Specs
| Minimum Operating Temperature (°C) | 105 |
| Stud Size | 5/16" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Maximum Copper Conductor Size (AWG) | 14 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | 16 |
| Minimum Copper Conductor Size (AWG SOL) | 16 |
| Minimum Copper Conductor Size (AWG STR) | 16 |
| Minimum Copper Conductor Size (AWG) | 16 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Finish/Coating | Tinned |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
Panduit Panduit PNF14-56R-M | Ring Terminal | UPC - 07498381053 Environmental Information
| Panduit's RoHS Statement | Download and View |
