Brand: Panduit
|
SKU:
10044571

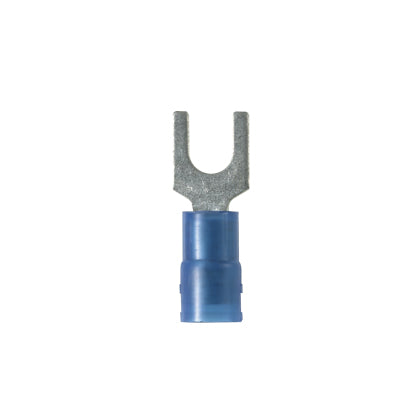

Panduit PNF14-6F-M | Loose Piece Terminal | UPC - 07498381036
Regular price
$539.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF14-6F-M | Loose Piece Terminal | UPC - 07498381036
Regular price
$539.11
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PNF-F, Stranded Copper Conductor, 16 to 14 AWG Conductor, #6 Stud, 0.8 in Length, Funnel Entry/Sleeved Barrel, Fork Tongue, 0.28 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.162 in Dia Nylon Insulation, 0.22 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PNF14-6F-M | Loose Piece Terminal | UPC - 07498381036 Key Specs
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PNF14-6F-M | Loose Piece Terminal | UPC - 07498381036 Environmental Information
| Panduit's RoHS Statement | Download and View |
