Brand: Panduit
|
SKU:
10044573-EA

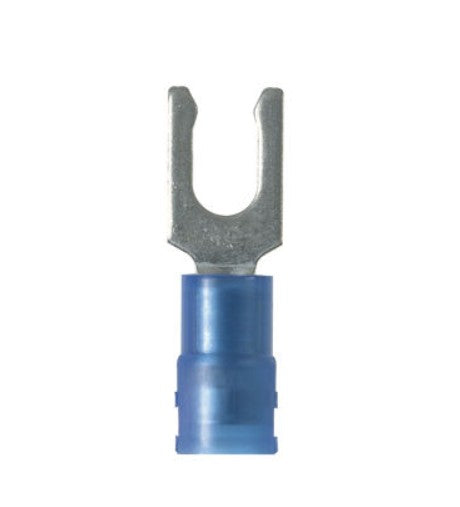

Panduit PNF14-6LF-M | Pan-Term Nylon-Insulated Locking Fork Terminal
Regular price
$1.26
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog

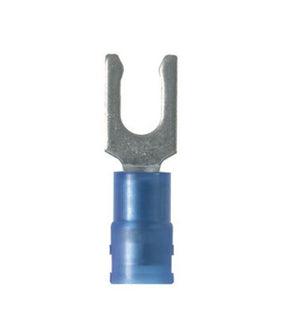

Panduit PNF14-6LF-M | Pan-Term Nylon-Insulated Locking Fork Terminal
Regular price
$1.26
Unit price
Description
Description
Panduit PNF14-6LF-M | Pan-Term Nylon-Insulated Locking Fork Terminal
Our nylon-insulated locking fork terminal combines a secure, locking fork with vibration-resistant insulation for lasting performance.
Specifications
Specifications
Panduit - PNF14-6LF-M - Specifications
| Fork Type | Locking Fork |
|---|---|
| Insulation Material | Nylon |
| Copper Conductor Size | 16-14 AWG |
| Wire Size | 16-14 AWG |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.32 |
| Barrel Length (mm) | 8.3 |
| Flammability Rating | UL 94 HB |
