Brand: Panduit
|
SKU:
PNF14-6RN-C
Panduit PNF14-6RN-C | Pan-Term PNF14-6RN-C Ring Terminal
Regular price
$142.40
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF14-6RN-C | Pan-Term PNF14-6RN-C Ring Terminal
Regular price
$142.40
Unit price
Description
Description

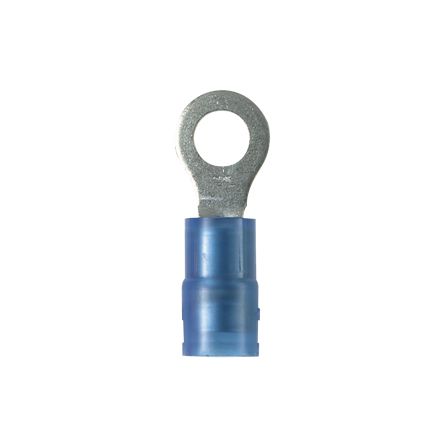

Panduit PNF14-6RN-C | Pan-Term PNF14-6RN-C Ring Terminal
Ring Terminal, 16 – 14 AWG, #6 stud size, narrow tongue, funnel entry, nylon insulated, standard package.
Panduit - PNF14-6RN-C - Features
- Ring Terminal, 16 - 14 AWG, #6 stud size, narrow tongue, funnel entry, nylon insulated.
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PNF14-6RN-C - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PNF14-6RN-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PNF14-6RN-C |
| Item Description | Pan-Term PNF14-6RN-C Ring Terminal |
| Minimum Operating Temperature (°C) | 105 |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-106) |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.39 |
| Barrel Length (mm) | 9.9 |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Minimum Wire Insulation Diameter (In.) | 0.8 |
| Minimum Wire Insulation Diameter (mm) | 20.3 |
| Outer Diameter (In.) | 0.18 |
| Outer Diameter (mm) | 4.6 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.78 |
| Overall Length (mm) | 19.8 |
| Overall Width (In.) | 0.25 |
| Overall Width (mm) | 6.4 |
| Tongue Length (In.) | 0.39 |
| Tongue Length (mm) | 9.9 |
| Tongue Thickness (In.) | 0.32 |
| Tongue Thickness (mm) | 8.1 |
| Tongue Width (In.) | 0.25 |
| Tongue Width (mm) | 6.4 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint d |
Panduit - PNF14-6RN-C - Package Information
| UPC | 07498351324 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0005 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.0025 |
