Brand: Panduit
|
SKU:
PAN-PNF14-8F-3K
Panduit PNF14-8F-3K | Terminals on a Reel | UPC - 07498381157
Regular price
$1,497.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF14-8F-3K | Terminals on a Reel | UPC - 07498381157
Regular price
$1,497.70
Unit price
Brand: Panduit
|
SKU:
PAN-PNF14-8F-3K
Regular price
$1,497.70
Unit price
Shipping calculated at checkout.
Description
Description

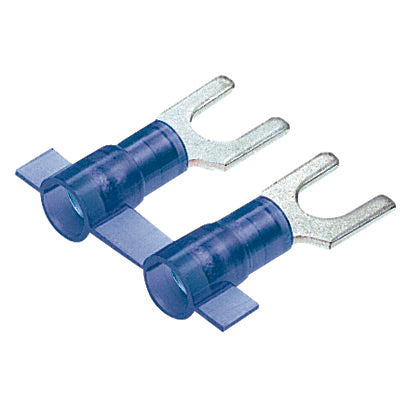

Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PNF-F, Stranded Copper Conductor, 16 to 14 AWG Conductor, #8 Stud, 0.84 in Length, Funnel Entry/Sleeved Barrel, Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.162 in Dia Nylon Insulation, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Flange design provides extra secure connection on a variety of applications
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
Panduit PNF14-8F-3K | Terminals on a Reel | UPC - 07498381157 Key Specs
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PNF14-8F-3K | Terminals on a Reel | UPC - 07498381157 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PNF18-6F-3K Product Page | Download and View |
| Part Drawings | Fork Terminals-A41140 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PNF14-8F-3K | Terminals on a Reel | UPC - 07498381157 Environmental Information
| Panduit's RoHS Statement | Download and View |
