Brand: Panduit
|
SKU:
10044575

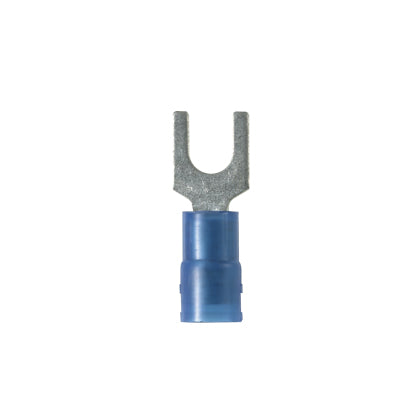

Panduit PNF14-8F-M | Loose Piece Terminal | UPC - 07498381042
Regular price
$539.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF14-8F-M | Loose Piece Terminal | UPC - 07498381042
Regular price
$539.11
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PNF-F, Stranded Copper Conductor, 16 to 14 AWG Conductor, #8 Stud, 0.85 in Length, Funnel Entry/Insulation Grip Sleeve Barrel, Standard Fork Tongue, 0.31 in W Tongue, 600 VAC, 0.31 in L Wire Strip, 0.16 in Nylon Insulation, 221 deg F, Copper, Tin Plated, Blue
- Fork design provides for fast and easy installation, without the need to remove fastener
- Flange design provides extra secure connection on a variety of applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit PNF14-8F-M | Loose Piece Terminal | UPC - 07498381042 Key Specs
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PNF14-8F-M | Loose Piece Terminal | UPC - 07498381042 Environmental Information
| Panduit's RoHS Statement | Download and View |
