Panduit PNF14-8R-M | Ring Terminal | UPC - 07498381044
Regular price
$513.68
Unit price
Brand: Panduit
|
SKU:
PAN-PNF14-8R-M
Regular price
$513.68
Unit price
Shipping calculated at checkout.
Description
Description

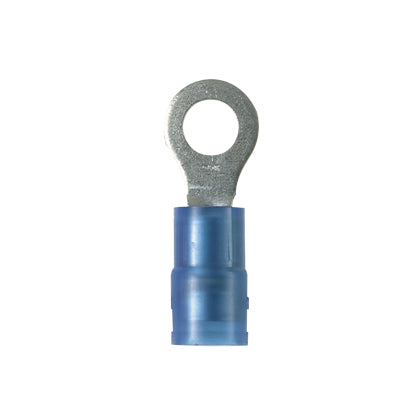

Panduit Pan-Term Terminal, Type PNF-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #8 Stud, 0.87 in Length, Insulation Grip Sleeve/Funnel Entry Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PNF14-8R-M | Ring Terminal | UPC - 07498381044 Key Specs
| Minimum Operating Temperature (°C) | 105 |
| Stud Hole Size (In.) | 8.00 |
| Stud Hole Size (mm) | 203.2 |
| Stud Size | #8 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Maximum Copper Conductor Size (AWG) | 14 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | 16 |
| Minimum Copper Conductor Size (AWG SOL) | 14 |
| Minimum Copper Conductor Size (AWG STR) | 14 |
| Minimum Copper Conductor Size (AWG) | 16 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Finish/Coating | Tinned |
Panduit PNF14-8R-M | Ring Terminal | UPC - 07498381044 Data Sheets
| Cross References | Terminal Military Cross Reference | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | #16-14 Barrel Nylon Insulated, Funneled Wire Entry Ring Tongue, .162 [4.11] Max. Wire Insulation Diameter Part Drawing A41276 | Download and View |
Panduit PNF14-8R-M | Ring Terminal | UPC - 07498381044 Environmental Information
| Panduit's RoHS Statement | Download and View |
