Brand: Panduit
|
SKU:
10044777
Panduit PNF18-10F-3K | Terminals on a Reel | UPC - 07498381137
Regular price
$1,482.87
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF18-10F-3K | Terminals on a Reel | UPC - 07498381137
Regular price
$1,482.87
Unit price
Description
Description

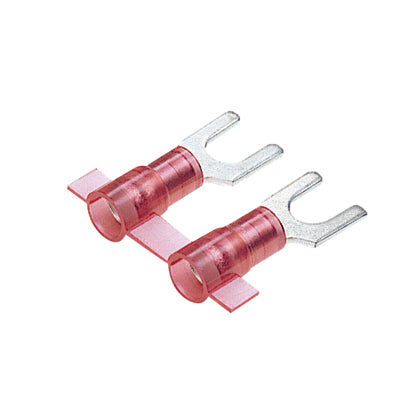

Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PNF-F, Stranded Copper Conductor, 22 to 18 AWG Conductor, #10 Stud, 0.85 in Length, Funnel Entry/Insulation Grip Sleeve Barrel, Standard Fork Tongue, 0.35 in W Tongue, 600 VAC, 0.25 in L Wire Strip, 0.15 in Nylon Insulation, 221 deg F, Copper, Tin Plated, Red
- Locks in place for secure connection
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Fork design provides for fast and easy installation, without the need to remove fastener
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit PNF18-10F-3K | Terminals on a Reel | UPC - 07498381137 Key Specs
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Flammability Rating | UL 94 V-2/UL 94 HB |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Operating Temperature (°C) | 105 |
Panduit Panduit PNF18-10F-3K | Terminals on a Reel | UPC - 07498381137 Environmental Information
| Panduit's RoHS Statement | Download and View |
