Brand: Panduit
|
SKU:
10044577
Panduit PNF18-10F-C | Loose Piece Terminal | UPC - 07498351348
Regular price
$141.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF18-10F-C | Loose Piece Terminal | UPC - 07498351348
Regular price
$141.41
Unit price
Description
Description

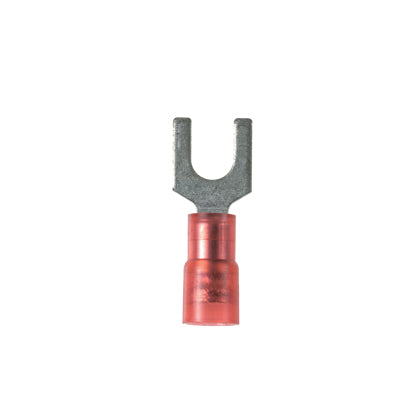

Panduit Pan-Term Fork Terminal, Loose Piece, Series: PNF-F, Stranded Copper Conductor, 22 to 18 AWG Conductor, #10 Stud, 0.87 in Length, Funnel Entry/Sleeved Barrel, Fork Tongue, 0.34 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.136 in Dia Nylon Insulation, 0.26 in Clearance, 221 deg F, Copper, Tin Plated, Red
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Non-expanded insulation
Panduit Panduit PNF18-10F-C | Loose Piece Terminal | UPC - 07498351348 Key Specs
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR312120 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
Panduit Panduit PNF18-10F-C | Loose Piece Terminal | UPC - 07498351348 Environmental Information
| Panduit's RoHS Statement | Download and View |
