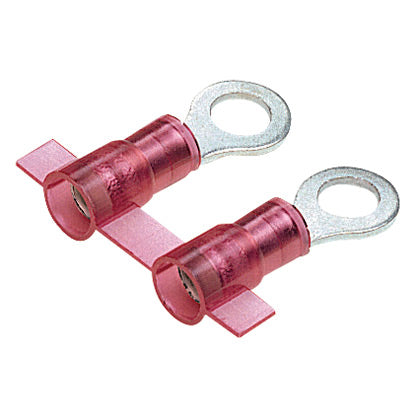

Panduit Pan-Term Reel Smart Terminal, Type PNF-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #10 Stud, 0.86 in Length, Insulation Grip Sleeve/Funnel Entry Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PNF18-10R-3K | Ring Terminal on Reel | UPC - 07498381133 Key Specs
| Minimum Operating Temperature (°C) | 105 |
| Stud Size | #10 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL 486A/B, and CSA 22.2 No.65 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
