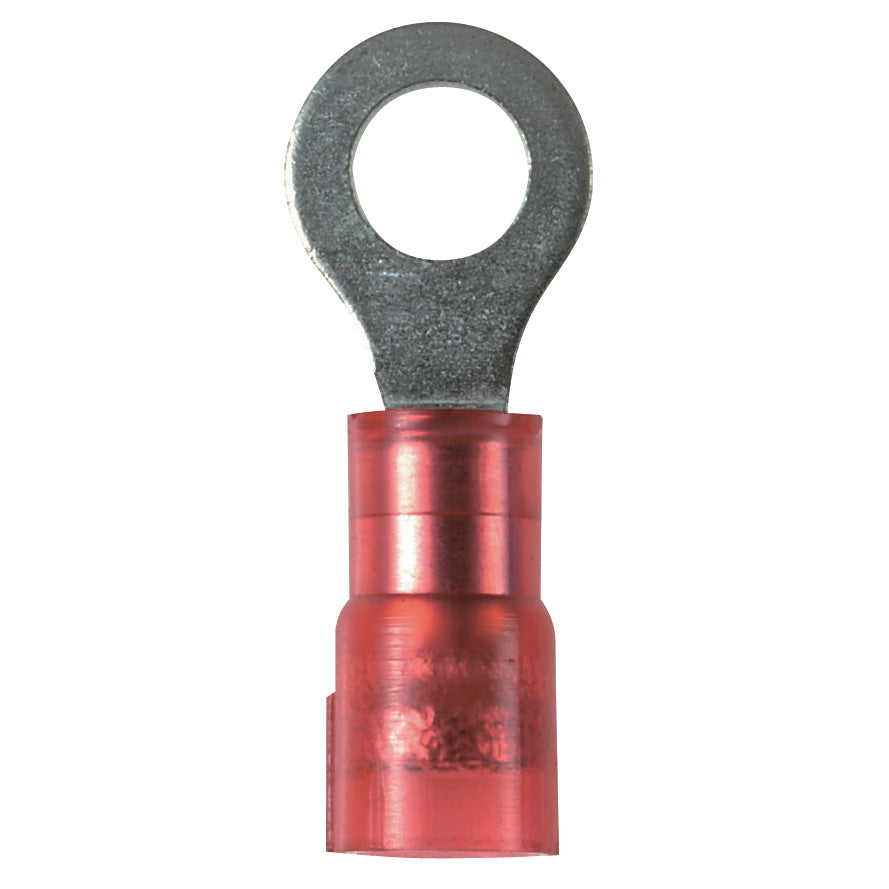

Panduit PNF18-38R-C | Ring, Funnel, Nylon, 22-18AWG, 3/8", PK100

Panduit - PNF18-38R-C - Features

• Type TN nylon-insulated terminals are designed for heavy duty industrial, utility and military power and control-circuit applications for wire sizes 26 AWG through 10 AWG
• They offer high dielectric strength and stability in oily conditions and meet military class 1 and class 2 requirements per SAE AS25036 and the requirements of military specifications SAE AS7928
• An integral one piece copper barrel/insulation grip and wire strain relief design provides improved physical strength characteristics over a multi-piece design
• Manufactured of pure electrolytic copper provides maximum conductivity
• Low resistance and ductility for excellent crimp forming properties
• Brazed seam provides a stronger barrel design to minimize any possible splitting and eliminates folding
• Deep inner barrel serrations provides excellent electrical conductivity and pullout strength values
• Smooth funnel entry provides easy wire insertion
• The insulation is locked in place will not twist off, thereby maintains proper dielectric values
• Electro-tin plated provides durable long-lasting resistance to corrosion
• Color-coded and clearly marked provides quick, easy wire size identification
• Ring tongue provides a secure termination under the screw head that can not be removed without complete removal of the screw
• Two or more terminals may be stacked on a common stud easily provides flexibility and versatility
• Pure electrolytic copper
