Brand: Panduit
|
SKU:
670898-EA
Panduit PNF18-38R-C | Ring,Funnel,Nylon,22-18AWG,3/8",PK100
Regular price
$1.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF18-38R-C | Ring,Funnel,Nylon,22-18AWG,3/8",PK100
Regular price
$1.70
Unit price
Description
Description

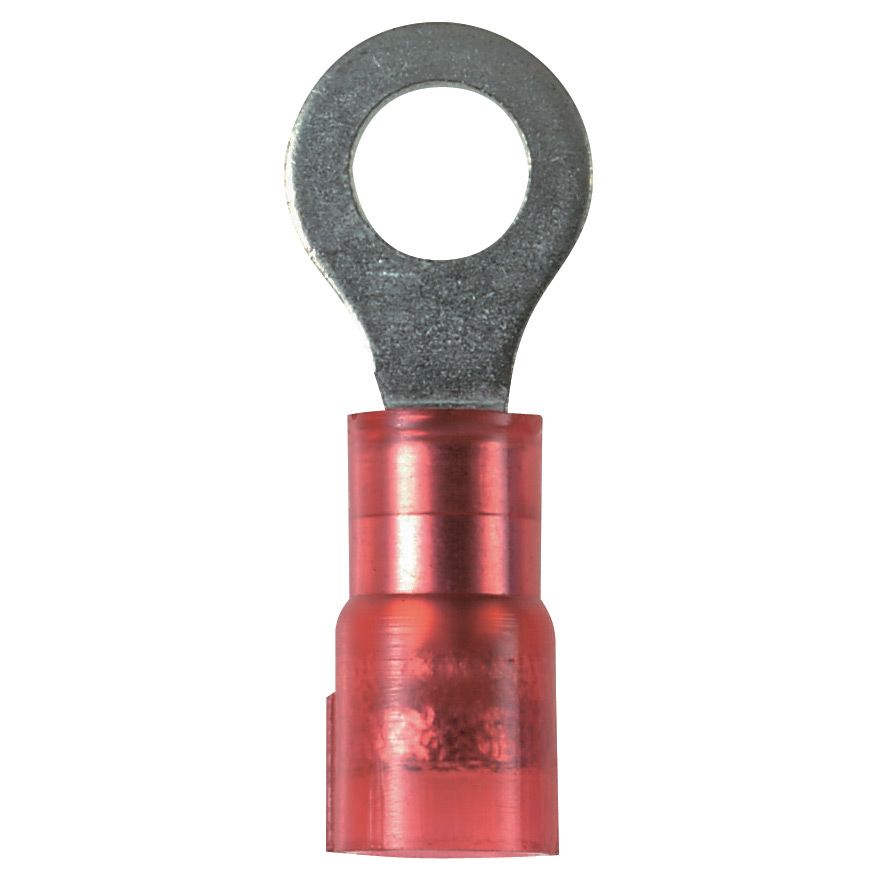

Panduit PNF18-38R-C | Ring,Funnel,Nylon,22-18AWG,3/8",PK100
Ring Terminal, 22 – 18 AWG, 3/8" stud size, funnel entry, nylon insulated, standard package.
Panduit PNF18-38R-C - TERMINAL-RING - RING TERMINAL 22-18AWG
Specifications
Specifications
Panduit - PNF18-38R-C - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PNF18-38R-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PNF18-38R-C |
| Item Description | Ring,Funnel,Nylon,22-18AWG,3/8",PK100 |
| Minimum Operating Temperature (°C) | 105 |
| Stud Size | 3/8" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 18 |
| Maximum Copper Conductor Size (AWG STR) | 18 |
| Maximum Copper Conductor Size (AWG) | 18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | 22 |
| Minimum Copper Conductor Size (AWG STR) | 22 |
| Minimum Copper Conductor Size (AWG) | 22 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Finish/Coating | Tinned |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.57 |
| Barrel Length (mm) | 14.5 |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL 94 V-2/UL 94 HB |
| Insulation Diameter (In.) | 0.2 |
| Insulation Diameter (mm) | 5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.14 |
| Maximum Wire Insulation Diameter (mm) | 3.5 |
| Outer Diameter (In.) | 0.22 |
| Outer Diameter (mm) | 5.5 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.16 |
| Overall Length (mm) | 29.5 |
| Overall Width (In.) | 0.53 |
| Overall Width (mm) | 13.5 |
| Tongue Length (In.) | 0.57 |
| Tongue Length (mm) | 14.5 |
| Tongue Thickness (In.) | 0.32 |
| Tongue Thickness (mm) | 8.1 |
| Tongue Width (In.) | 0.53 |
| Tongue Width (mm) | 13.5 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - PNF18-38R-C - Package Information
| UPC | 07498351322 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0013 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0063 |
