Brand: Panduit
|
SKU:
10044723

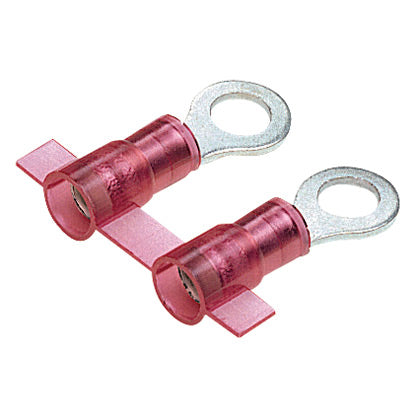

Panduit PNF18-4R-3K | Ring Terminal | UPC - 07498381129
Regular price
$1,365.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF18-4R-3K | Ring Terminal | UPC - 07498381129
Regular price
$1,365.58
Unit price
Description
Description
Panduit Pan-Term Reel Smart Terminal, Type PNF-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #4 Stud, 0.78 in Length, Insulation Grip Sleeve/Funnel Entry Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
- Ring tongue design assures a secure connection in high vibration applications
- Nickel plated copper for temperatures up to 650 deg F (343 deg C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Without insulation
Panduit Panduit PNF18-4R-3K | Ring Terminal | UPC - 07498381129 Key Specs
| Minimum Operating Temperature (°C) | 105 |
| Stud Hole Size (In.) | 4.00 |
| Stud Hole Size (mm) | 101.6 |
| Stud Size | #4 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 18 |
| Maximum Copper Conductor Size (AWG STR) | 18 |
| Maximum Copper Conductor Size (AWG) | 18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | 22 |
| Minimum Copper Conductor Size (AWG SOL) | 22 |
| Minimum Copper Conductor Size (AWG STR) | 22 |
| Minimum Copper Conductor Size (AWG) | 22 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tinned |
Panduit Panduit PNF18-4R-3K | Ring Terminal | UPC - 07498381129 Environmental Information
| Panduit's RoHS Statement | Download and View |
