Brand: Panduit
|
SKU:
10044724

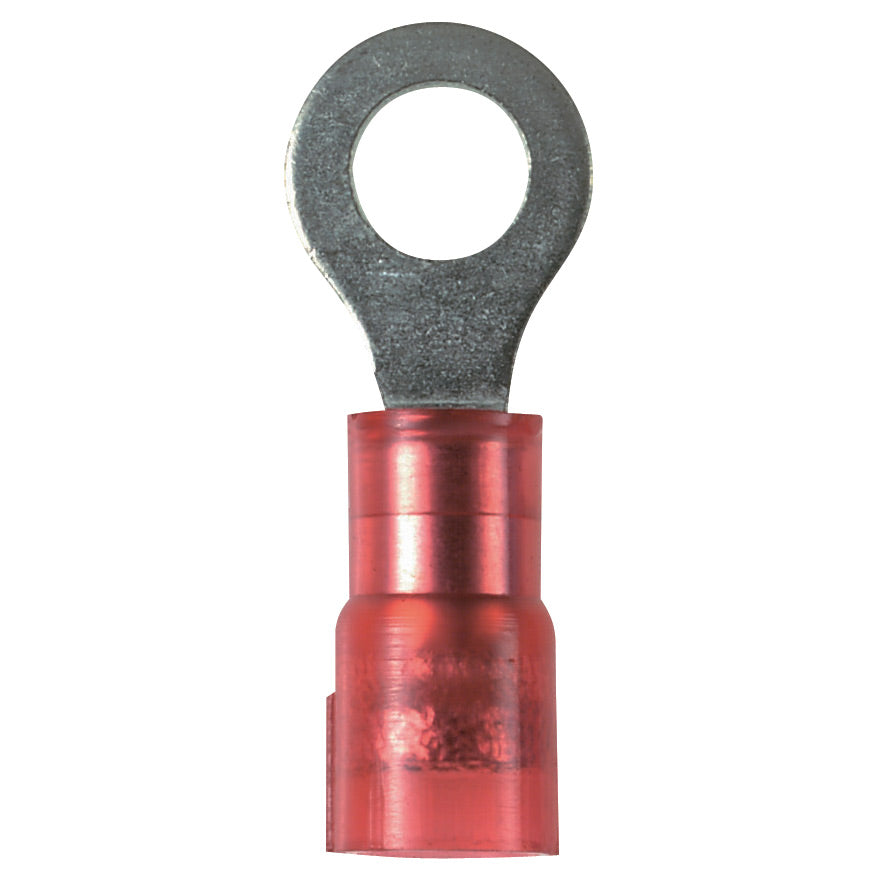

Panduit PNF18-4R-M | Ring Terminal | UPC - 07498381055
Regular price
$539.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF18-4R-M | Ring Terminal | UPC - 07498381055
Regular price
$539.11
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PNF-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #4 Stud, 0.77 in Length, Insulation Grip Sleeve/Funnel Entry Barrel, Ring Tongue, 0.25 in W x 0.32 in THK Tongue, 600 VAC, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red, 1/4 in W
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Panduit Panduit PNF18-4R-M | Ring Terminal | UPC - 07498381055 Key Specs
| Minimum Operating Temperature (°C) | 105 |
| Stud Hole Size (In.) | 4.00 |
| Stud Hole Size (mm) | 10.2 |
| Stud Size | #4 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 18 |
| Maximum Copper Conductor Size (AWG STR) | 18 |
| Maximum Copper Conductor Size (AWG) | 18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | 22 |
| Minimum Copper Conductor Size (AWG SOL) | 22 |
| Minimum Copper Conductor Size (AWG STR) | 22 |
| Minimum Copper Conductor Size (AWG) | 22 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Finish/Coating | Tinned |
Panduit Panduit PNF18-4R-M | Ring Terminal | UPC - 07498381055 Environmental Information
| Panduit's RoHS Statement | Download and View |
