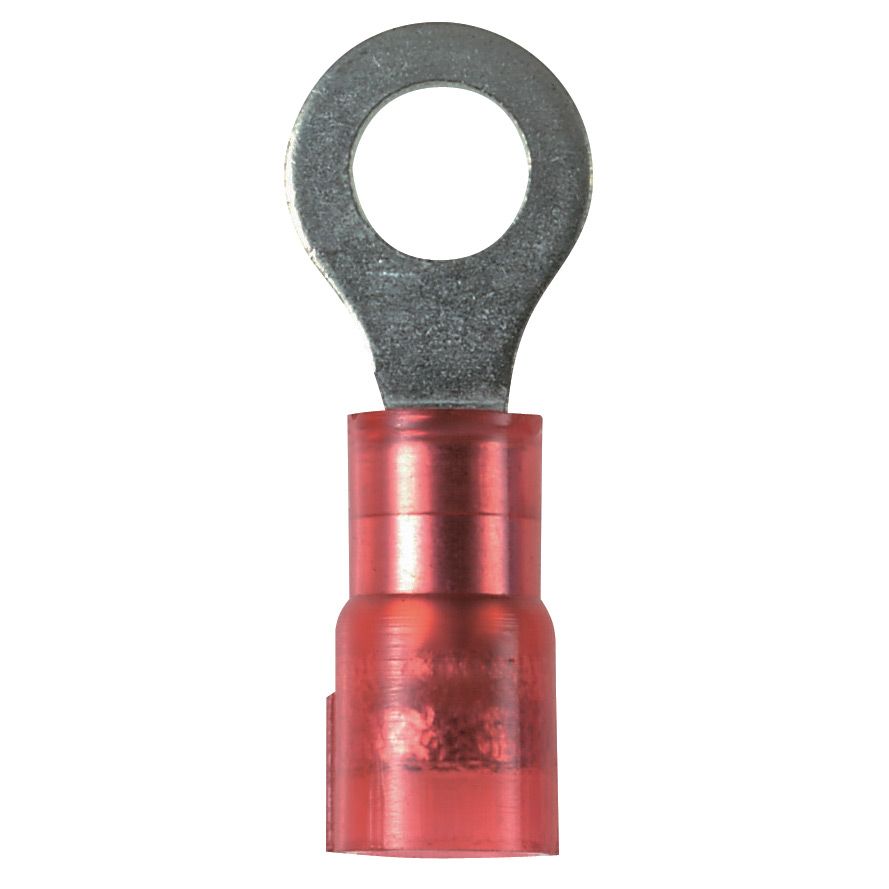

Panduit PNF18-56R-C | Ring Terminal
Regular price
$122.66
Unit price
Brand: Panduit
|
SKU:
670899
Regular price
$122.66
Unit price
Description
Description
Panduit PNF18-56R-C | Ring Terminal
Ring Terminal, 22 – 18 AWG, 5/16" stud size, funnel entry, nylon insulated, standard package.
Panduit - PNF18-56R-C - Features
- Without pulling eye
Specifications
Specifications
Panduit - PNF18-56R-C - Specifications
| Minimum Operating Temperature (°C) | 105 |
|---|---|
| Stud Size | 5/16" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 18 |
| Maximum Copper Conductor Size (AWG STR) | 18 |
| Maximum Copper Conductor Size (AWG) | 18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | 22 |
| Minimum Copper Conductor Size (AWG SOL) | 22 |
| Minimum Copper Conductor Size (AWG STR) | 22 |
| Minimum Copper Conductor Size (AWG) | 22 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Finish/Coating | Tinned |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.5 |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL 94 V-2/UL 94 HB |
| Insulation Diameter (In.) | 0.14 |
| Insulation Diameter (mm) | 3.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.14 |
| UPC | 07498351321 |
