Brand: Panduit
|
SKU:
PAN-PNF18-6FN-3K
Panduit PNF18-6FN-3K | Terminals on a Reel | UPC - 07498381075
Regular price
$1,744.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF18-6FN-3K | Terminals on a Reel | UPC - 07498381075
Regular price
$1,744.61
Unit price
Brand: Panduit
|
SKU:
PAN-PNF18-6FN-3K
Regular price
$1,744.61
Unit price
Shipping calculated at checkout.
Description
Description

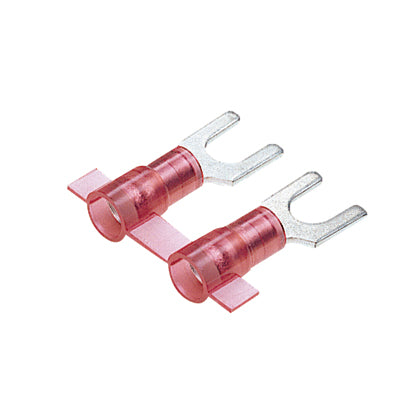

Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: P-FN, Stranded Copper Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.77 in Length, Funnel Entry/Insulation Grip Sleeve Barrel, Narrow Fork Tongue, 0.24 in W Tongue, 600 VAC, 0.25 in L Wire Strip, 0.15 in Nylon Insulation, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Flange design provides extra secure connection on a variety of applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit PNF18-6FN-3K | Terminals on a Reel | UPC - 07498381075 Key Specs
| Fork Type | Narrow Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
Panduit PNF18-6FN-3K | Terminals on a Reel | UPC - 07498381075 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PNF18-6F-3K Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PNF18-6FN-3K | Terminals on a Reel | UPC - 07498381075 Environmental Information
| Panduit's RoHS Statement | Download and View |
