Brand: Panduit
|
SKU:
10044581

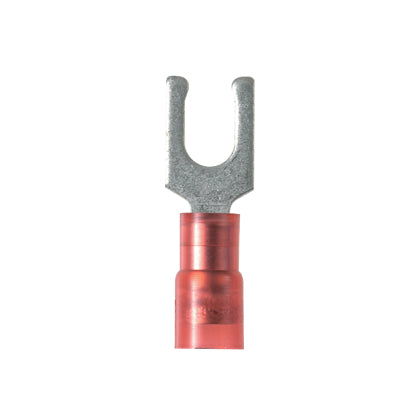

Panduit PNF18-6LF-C | Loose Piece Terminal | UPC - 07498351358
Regular price
$141.71
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF18-6LF-C | Loose Piece Terminal | UPC - 07498351358
Regular price
$141.71
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PNF-LF, Stranded Copper Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.82 in Length, Funnel Entry/Sleeved Barrel, Locking Fork Tongue, 0.27 in W x 0.032 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.08 to 0.145 in Dia Nylon Insulation, 0.2 in Clearance, 221 deg F, Copper, Tin Plated, Red
- Fork design provides for fast and easy installation, without the need to remove fastener
- Flange design provides extra secure connection on a variety of applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PNF18-6LF-C | Loose Piece Terminal | UPC - 07498351358 Key Specs
| Fork Type | Locking Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR312120 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PNF18-6LF-C | Loose Piece Terminal | UPC - 07498351358 Environmental Information
| Panduit's RoHS Statement | Download and View |
