Brand: Panduit
|
SKU:
4060396-JBT
Panduit PNF18-6LF-M | Pan-Term PNF18-6LF-M Loose Piece Terminal
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF18-6LF-M | Pan-Term PNF18-6LF-M Loose Piece Terminal
Regular price
$1.47
Unit price
Description
Description
Panduit PNF18-6LF-M | Pan-Term PNF18-6LF-M Loose Piece Terminal

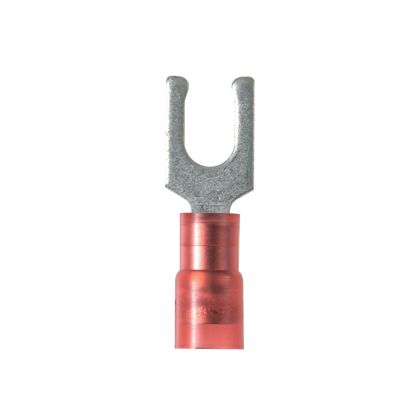

Locking Fork Terminal, nylon insulated, funnel entry, 22-18 AWG, #6 stud size, bulk package.
Specifications
Specifications
Panduit - PNF18-6LF-M - Product Categories
- Wire Termination
- Fork Terminals
Panduit - PNF18-6LF-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PNF18-6LF-M |
| Item Description | Pan-Term PNF18-6LF-M Loose Piece Terminal |
| Fork Type | Locking Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.31 |
| Barrel Length (mm) | 8 |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Butted |
| Maximum Wire Insulation Diameter (In.) | 0.145 |
| Maximum Wire Insulation Diameter (mm) | 3.68 |
| Outer Diameter (In.) | 0.15 |
| Outer Diameter (mm) | 3.7 |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Inside Diameter (In.) | 0.08 |
| Inside Diameter (mm) | 2 |
| Overall Length (In.) | 0.82 |
| Overall Length (mm) | 20.8 |
| Overall Width (In.) | 0.27 |
| Overall Width (mm) | 6.9 |
| Tongue Length (In.) | 0.51 |
| Tongue Length (mm) | 12.8 |
| Sub Brand | Pan-Term |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.27 |
Brand Name - PNF18-6LF-M - Package Information
| UPC | 07498381058 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.0461 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
