Panduit PNF18-6RN-M | Pan-Term Ring Terminal
Regular price
$539.11
Unit price
Brand: Panduit
|
SKU:
PNF18-6RN-M
Regular price
$539.11
Unit price
Description
Description

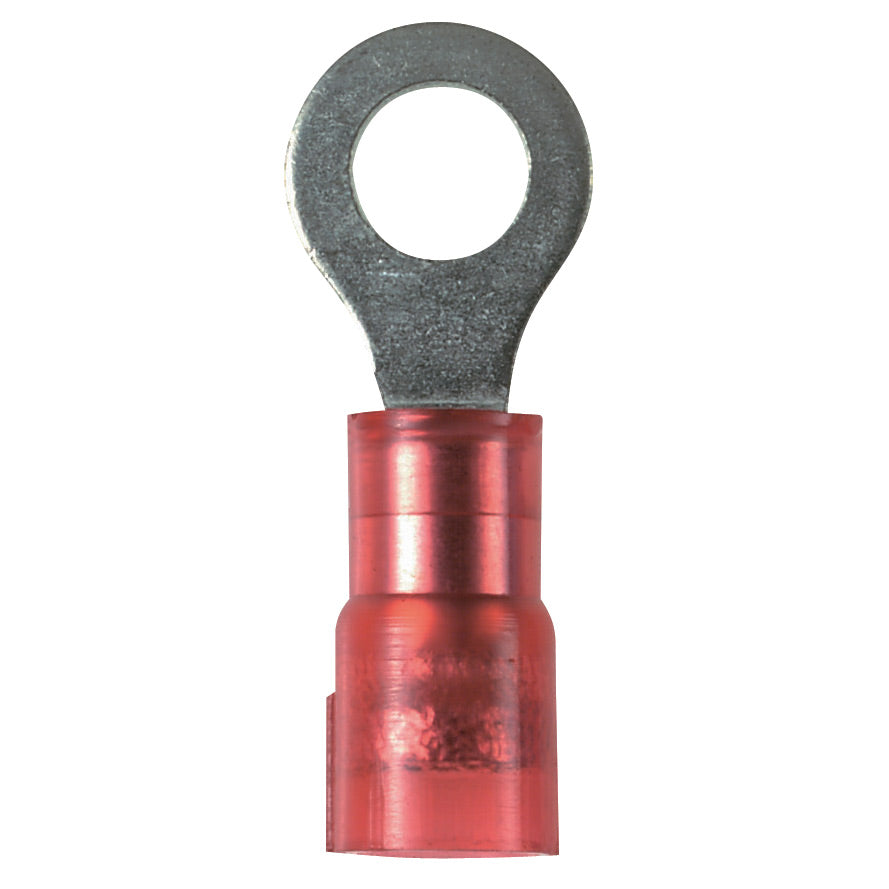

Panduit PNF18-6RN-M | Pan-Term Ring Terminal
Our ring terminal is designed for tighter space, the narrow tongue fits easily into compact areas, with the protective nylon insulation for lasting connections.
Ring Terminal, 22 - 18 AWG, #6 stud size, narrow tongue, funnel entry, nylon insulated.
Panduit Pan-Term Terminal, Type PNF-RN, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.76 in Length, Insulation Grip Sleeve/Funnel Entry Barrel, Narrow Ring Tongue, 0.22 in W x 0.32 in THK Tongue, 600 VAC, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red, 0.22 in W
Panduit - PNF18-6RN-M - Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PNF18-6RN-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PNF18-6RN-M |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-101) |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.37 |
| Barrel Length (mm) | 9.4 |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL94V-2/UL94-HB |
| UPC | 07498381061 |
