Panduit PNF18-8F-3K | Reel Smart Fork Terminal, Red, Nylon, 18-22 A...
Description
Description
Protect your electrical connections with our fork terminal, the nylon-insulated body ensure a safe and reliable connection for various applications.

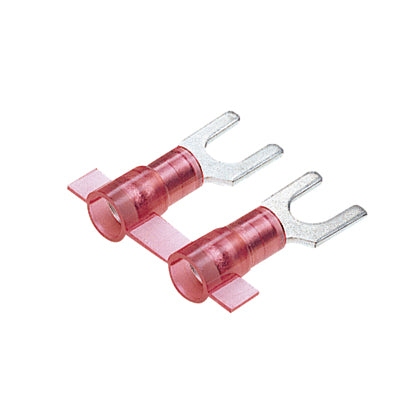

Fork Terminal, nylon insulated, funnel entry, metal insulation grip sleeve, 22 - 18 AWG wire range, #8 stud size.
Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PNF-F, Stranded Copper Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.83 in Length, Funnel Entry/Sleeved Barrel, Fork Tongue, 0.32 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 0.145 in Dia Nylon Insulation, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Red
Panduit - PNF18-8F-3K - Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Non-expanded insulation
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PNF18-8F-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PNF18-8F-3K |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498381136 |
