Brand: Panduit
|
SKU:
PAN-PNF18-8FF-3K
Panduit PNF18-8FF-3K | Terminals on a Reel | UPC - 07498381148
Regular price
$1,644.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PNF18-8FF-3K | Terminals on a Reel | UPC - 07498381148
Regular price
$1,644.61
Unit price
Brand: Panduit
|
SKU:
PAN-PNF18-8FF-3K
Regular price
$1,644.61
Unit price
Shipping calculated at checkout.
Description
Description

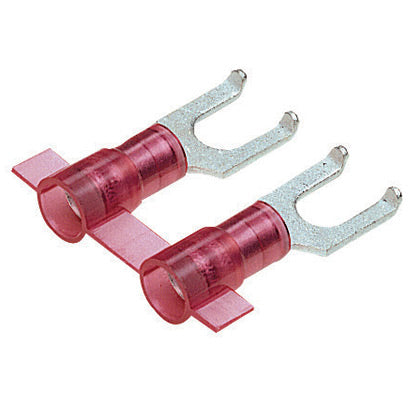

Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PNF-FF, Stranded Copper Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.87 in Length, Funnel Entry/Sleeved Barrel, Flanged Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 0.09 to 0.145 in Dia Nylon Insulation, 0.23 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PNF18-8FF-3K | Terminals on a Reel | UPC - 07498381148 Key Specs
| Fork Type | Flanged Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR312120 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PNF18-8FF-3K | Terminals on a Reel | UPC - 07498381148 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PNF18-6FF-3K Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A41202 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PNF18-8FF-3K | Terminals on a Reel | UPC - 07498381148 Environmental Information
| Panduit's RoHS Statement | Download and View |
