Panduit PNF18-8LF-3K | Reel Smart Terminals on a Reel
Description
Description

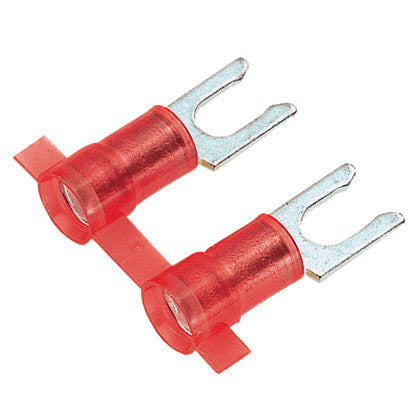

Our nylon-insulated locking fork terminal combines a secure, locking fork with vibration-resistant insulation for lasting performance.
Locking Fork Terminal, nylon insulated, funnel entry, metal insulation grip sleeve, 22 - 18 AWG wire range, #8 stud size.
Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PNF-LF, Stranded Copper Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.89 in Length, Funnel Entry/Insulation Grip Sleeve Barrel, Locking Fork Tongue, 0.29 in W Tongue, 600 VAC, 0.25 in L Wire Strip, 0.15 in Nylon Insulation, 221 deg F, Copper, Tin Plated, Red
Panduit - PNF18-8LF-3K - Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
Specifications
Panduit - PNF18-8LF-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PNF18-8LF-3K |
| UNSPSC Code | 39121400 |
| Fork Type | Locking Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498381141 |
