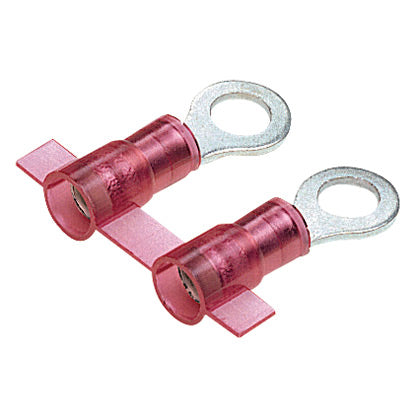

Panduit PNF18-8R-3K | Reel Smart Ring Terminal, Red, Nylon, 18-22 A...
Description
Description
Our ring terminal offers reliable, secure connections with durable nylon insulation for electrical applications in various environments.
Ring Terminal, nylon insulated, funnel entry, metal sleeve, 22 " 18 AWG, #8 stud size.
Panduit Pan-Term Reel Smart Terminal, Type PNF-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.86 in Length, Insulation Grip Sleeve/Funnel Entry Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Red
Panduit - PNF18-8R-3K - Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PNF18-8R-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PNF18-8R-3K |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.43 |
| Barrel Length (mm) | 10.9 |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL94V-2/UL94-HB |
| UPC | 07498381132 |
