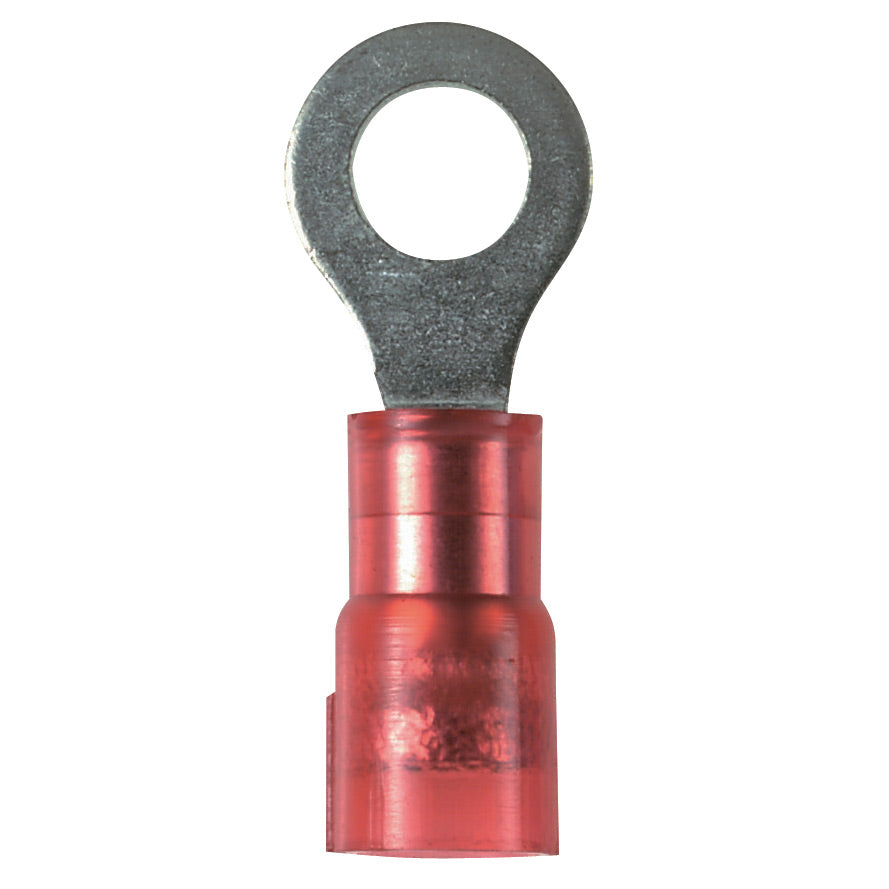

Panduit Pan-Term Terminal, Type PNF-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.87 in Length, Insulation Grip Sleeve/Funnel Entry Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.24 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit PNF18-8R-M | Ring Terminal | UPC - 07498381065 Key Specs
| Minimum Operating Temperature (°C) | 105 |
| Stud Hole Size (In.) | 8.00 |
| Stud Hole Size (mm) | 203.2 |
| Stud Size | #8 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 18 |
| Maximum Copper Conductor Size (AWG STR) | 18 |
| Maximum Copper Conductor Size (AWG) | 18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | 22 |
| Minimum Copper Conductor Size (AWG SOL) | 22 |
| Minimum Copper Conductor Size (AWG) | 22 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Finish/Coating | Tinned |
| Color Code | Red |
Panduit PNF18-8R-M | Ring Terminal | UPC - 07498381065 Data Sheets
| Cross References | Terminal Military Cross Reference | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Ring Terminals, 3 PC. Nylon Insulated, #22-18 AWG, Funnel Entry (PNF18) | Download and View |
Panduit PNF18-8R-M | Ring Terminal | UPC - 07498381065 Environmental Information
| Panduit's RoHS Statement | Download and View |
