Panduit PP1S-S10-C | Pan-Post PP1S-S10-C Post Standoff, Natural, PA 6.6, 1.97x0.72", 0.2" Screw Hole
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PP1S-S10-C | Pan-Post PP1S-S10-C Post Standoff, Natural, PA...
Description
Description

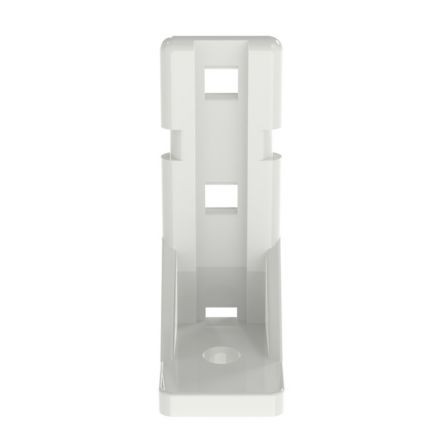

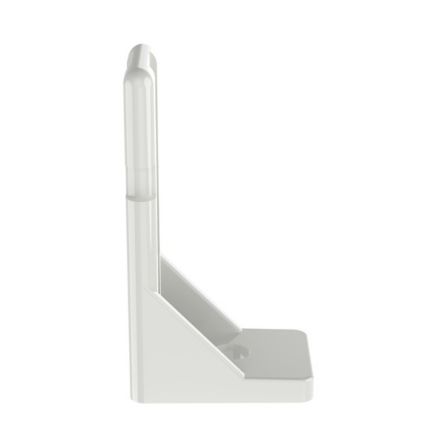

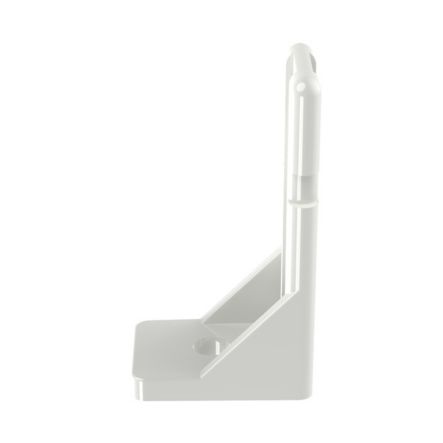

Panduit PP1S-S10-C Pan-Post Standoffs support cable bundles above or away from the surface. For use in indoor environments and with size #10 (M5) screws. They are 1.06" x .72" x 1.97" (26.9 x 18.3 x 50.0 mm) in size and can be used with miniature, intermediate, and standard cable ties. Made of Nylon 6.6, are natural in color and come in packages of 100.
Pan-Post Standoff, mounting method #10/M5 screw, 1.06";L x .72";W x 1.97";H (26.9mm x 18.3mm x 50.0mm). Used with cable ties M,I,S.
Specifications
Specifications
Panduit - PP1S-S10-C - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - PP1S-S10-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PP1S-S10-C |
| Item Description | Pan-Post PP1S-S10-C Post Standoff, Natural, PA 6.6, 1.97x0.72", 0.2" Screw Hole |
| Application | Pan-Post Standoff Supports Cable Bundles Above or Away from Surface |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #10 |
| Overall Height (In.) | 1.97 |
| Overall Height (mm) | 50 |
| Overall Length (In.) | 1.97 |
| Overall Length (mm) | 50 |
| Overall Width (In.) | 0.72 |
| Overall Width (mm) | 50.3 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Sub Brand | Pan-Post |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - PP1S-S10-C - Package Information
| UPC | 07498358943 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0860 |
| Standard. Ctn. Quantity | 1000 |
| Standard. Ctn. Volume (cf) | 0.8599 |
Panduit - PP1S-S10-C - Videos
| Video 1 | Click to View |
|---|
Documents and Downloads
Documents and Downloads
